The TPrinter class helps to print. More...

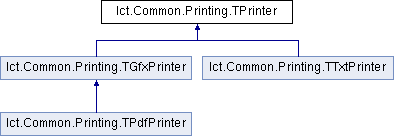

Inheritance diagram for Ict.Common.Printing.TPrinter:

Public Member Functions
virtual void	SaveState ()
	save the state before a rotation etc More...

virtual void	RestoreState ()
	restore the state after a rotation etc More...

virtual void	RotateAtTransform (double ADegrees, double XPos, double YPos)
	rotate the following output by some degrees, at the given position More...

abstract float	LineFeed (eFont AFont)
	Line Feed; increases the current y position by the height of the given font More...

virtual float	LineFeed ()
	Line Feed; increases the current y position by the height of the biggest last used font More...

float	LineFeed (float height)
	Line Feed; increases the current y position by the given height More...

abstract float	LineSpaceFeed (eFont AFont)
	Line Feed, but not full line; increases the current y position by half the height of the given font More...

abstract float	LineUnFeed (eFont AFont)
	Reverse Line Feed; decreases the current y position by the height of the given font More...

abstract Boolean	ValidXPos (float APosition)
	Is the given position still on the page? More...

abstract Boolean	ValidYPos ()
	Is the current line still on the page? More...

abstract float	LineFeedToPageFooter ()
	Jump to the position where the page footer starts. SetPageFooterSpace is used to define the space reserved for the footer. More...

abstract void	SetPageFooterSpace (System.Int32 ANumberOfLines, eFont AFont)
	Set the space that is required by the page footer. ValidYPos will consider this value. More...

abstract void	SetHasMorePages (bool AHasMorePages)
	Tell the printer, that there are more pages coming More...

abstract bool	HasMorePages ()
	more pages are coming More...

abstract float	Cm (float AValueInCm)
	Converts the given value in cm to the currently used measurement unit More...

abstract float	PixelHorizontal (float AValueInPixel)
	Converts the given value in pixel to the currently used measurement unit, using the horizontal resolution More...

abstract float	PixelVertical (float AValueInPixel)
	Converts the given value in pixel to the currently used measurement unit, using the vertical resolution More...

abstract Boolean	PrintString (String ATxt, eFont AFont, eAlignment AAlign)
	prints into the current line, aligned x position More...

abstract Boolean	PrintString (String ATxt, eFont AFont, float AXPos)
	prints into the current line, absolute x position More...

abstract bool	PrintString (String ATxt, eFont AFont, float AXPos, float AWidth, eAlignment AAlign)
	prints into the current line, absolute x position with width and alignment More...

virtual bool	PrintStringWrap (String ATxt, eFont AFont, float AXPos, float AWidth, eAlignment AAlign)
	prints into the current line, absolute x position with width and alignment this method uses FCurrentXPos and FCurrentYPos to be able to continue a paragraph uses FCurrentXPos and FCurrentYPos to know where to start to print, and also sets valid values in those member variables More...

abstract Boolean	PrintStringAndFits (String ATxt, eFont AFont, float AXPos, float AWidth, eAlignment AAlign)
	This function uses the normal DrawString function to print into a given space. More...

abstract float	GetWidthString (String ATxt, eFont AFont)
	Return the width of the string, if it was printed in one line, using the given Font More...

abstract Boolean	DrawLine (float AXPos1, float AXPos2, eLinePosition ALinePosition, eFont AFont)
	Draws a line, either above or below the current text line the font is required to get the height of the row More...

virtual void	DrawLine (Int32 APenPixels, float AXPos1, float AYPos1, float AXPos2, float AYPos2)
	Draws a line, at specified position More...

virtual void	DrawRectangle (Int32 APenPixels, float AXPos, float AYPos, float AWidth, float AHeight)
	draws a rectangle More...

virtual void	DrawBitmap (string APath, float AXPos, float AYPos)
	todoComment More...

virtual void	DrawBitmap (string APath, float AXPos, float AYPos, float AWidth, float AHeight, float AWidthPercentage, float AHeightPercentage)
	Draw a bitmap. More...

	TPrinter ()
	constructor More...

virtual void	Init (eOrientation AOrientation, TPrinterLayout APrinterLayout, eMarginType AMarginType)
	sets the orientation of the page More...

void	StartSimulatePrinting ()
	start the simulation of printing; nothing is actually printed, but the CurrentYPos is increased More...

void	FinishSimulatePrinting ()
	finish the simulation of printing; the actual CurrentYPos is restored More...

void	PushCurrentState ()
	store the current printer state (font size etc) More...

void	PopCurrentState ()
	return to previous printer state; this is used for printing table cells More...

void	PopCurrentStateApartFromYPosition ()
	return to previous printer state; but keep the new y position (used eg. for printing the page header) More...

float	Inch (float AValueInInch)
	Converts the given value in inch to the currently used measurement unit; uses Inch2Cm and Cm More...

virtual void	InsertDocument (string AFilename)
	insert another document into the current document. At the moment only used for PDF More...

virtual float	PrintTable (float AXPos, float AWidthAvailable, List< TTableRowGfx >rows, out Int32 ARowsFittingOnPage)
	renders a table at the current FCurrentYPos does not support rowspan at the moment colspan might be implemented in the generation of the TTableRowGfx structure does not care about fitting on page etc. More...

Static Public Member Functions
static float	Cm2Inch (float AValueInCm)
	Converts the given value in cm to the equivalent value in inches More...

static float	Inch2Cm (float AValueInInch)
	Converts the given value in inches to the equivalent value in centimeters More...

Protected Attributes
eOrientation	FOrientation
	todoComment More...

eMarginType	FMarginType
	use printable area or default margins More...

Int32	FNumberOfPages
	todoComment More...

float	FPageFooterSpace
	how much space is needed for the footer lines; footerspace = font.height number of lines More...

float	FLeftMargin
	todoComment More...

float	FTopMargin
	todoComment More...

float	FRightMargin
	todoComment More...

float	FBottomMargin
	todoComment More...

float	FWidth
	todoComment More...

float	FHeight
	todoComment More...

TPrinterLayout	FPrinterLayout
	todoComment More...

TPrinterState	FCurrentState = new TPrinterState()
	current state of printer More...

PrintAction	FprintAction
	I can check whether I'm printing to a preview or a real printer. More...

Properties
System.Int32	CurrentPageNr `[get, set]`
	todoComment More...

System.Int32	CurrentDocumentNr `[get, set]`
	a document can consist of several pages; a document is one body element More...

System.Int32	NumberOfPages `[get, set]`
	this only has a valid value after the first rendering of the report More...

float	CurrentYPos `[get, set]`
	todoComment More...

float	CurrentXPos `[get, set]`
	todoComment More...

float	AnchorXPos `[get, set]`
	other elements can be positioned relative to this position More...

float	AnchorYPos `[get, set]`
	other elements can be positioned relative to this position More...

float	LeftMargin `[get]`
	todoComment More...

float	RightMargin `[get]`
	todoComment More...

eFont	CurrentFont `[get, set]`
	todoComment More...

float	CurrentLineHeight `[get, set]`
	1 is the normal height of the font, CurrentLineHeight is multiplied with the height of the font More...

float	CurrentRelativeFontSize `[get, set]`
	the relative font size; 0 is default size More...

eAlignment	CurrentAlignment `[get, set]`
	todoComment More...

ePrintingMode	PrintingMode `[get, set]`
	this is about simulation or printing More...

float	Width `[get]`
	todoComment More...

float	PageFooterSpace `[get]`
	todoComment More...

Detailed Description

The TPrinter class helps to print.

This is a generic class for printing. Most of the functions are abstract and need to be implemented by a derived class. This is TxtPrinter and GfxPrinter, that are derived from TPrinter

Constructor & Destructor Documentation

◆ TPrinter()

Ict.Common.Printing.TPrinter.TPrinter ( )

inline

constructor

Member Function Documentation

◆ Cm()

abstract float Ict.Common.Printing.TPrinter.Cm ( float AValueInCm )

pure virtual

Converts the given value in cm to the currently used measurement unit

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ Cm2Inch()

static float Ict.Common.Printing.TPrinter.Cm2Inch ( float AValueInCm )

inlinestatic

Converts the given value in cm to the equivalent value in inches

Returns: void

◆ DrawBitmap() [1/2]

virtual void Ict.Common.Printing.TPrinter.DrawBitmap	(	string	APath,
		float	AXPos,
		float	AYPos
	)

inlinevirtual

todoComment

Parameters

APath
AXPos
AYPos

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TPdfPrinter.

◆ DrawBitmap() [2/2]

virtual void Ict.Common.Printing.TPrinter.DrawBitmap	(	string	APath,
		float	AXPos,
		float	AYPos,
		float	AWidth,
		float	AHeight,
		float	AWidthPercentage,
		float	AHeightPercentage
	)

inlinevirtual

Draw a bitmap.

Either Width or WidthPercentage should be unequals 0, but only one should have a value. Same applies to Height

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TPdfPrinter.

◆ DrawLine() [1/2]

abstract Boolean Ict.Common.Printing.TPrinter.DrawLine	(	float	AXPos1,
		float	AXPos2,
		eLinePosition	ALinePosition,
		eFont	AFont
	)

pure virtual

Draws a line, either above or below the current text line the font is required to get the height of the row

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ DrawLine() [2/2]

virtual void Ict.Common.Printing.TPrinter.DrawLine	(	Int32	APenPixels,
		float	AXPos1,
		float	AYPos1,
		float	AXPos2,
		float	AYPos2
	)

inlinevirtual

Draws a line, at specified position

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TPdfPrinter.

◆ DrawRectangle()

virtual void Ict.Common.Printing.TPrinter.DrawRectangle	(	Int32	APenPixels,
		float	AXPos,
		float	AYPos,
		float	AWidth,
		float	AHeight
	)

inlinevirtual

draws a rectangle

Returns: void

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TPdfPrinter.

◆ FinishSimulatePrinting()

void Ict.Common.Printing.TPrinter.FinishSimulatePrinting ( )

inline

finish the simulation of printing; the actual CurrentYPos is restored

Returns: void

◆ GetWidthString()

abstract float Ict.Common.Printing.TPrinter.GetWidthString	(	String	ATxt,
		eFont	AFont
	)

pure virtual

Return the width of the string, if it was printed in one line, using the given Font

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ HasMorePages()

abstract bool Ict.Common.Printing.TPrinter.HasMorePages ( )

pure virtual

more pages are coming

Returns

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ Inch()

float Ict.Common.Printing.TPrinter.Inch ( float AValueInInch )

inline

Converts the given value in inch to the currently used measurement unit; uses Inch2Cm and Cm

Returns: void

◆ Inch2Cm()

static float Ict.Common.Printing.TPrinter.Inch2Cm ( float AValueInInch )

inlinestatic

Converts the given value in inches to the equivalent value in centimeters

Returns: void

◆ Init()

virtual void Ict.Common.Printing.TPrinter.Init	(	eOrientation	AOrientation,
		TPrinterLayout	APrinterLayout,
		eMarginType	AMarginType
	)

inlinevirtual

sets the orientation of the page

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ InsertDocument()

virtual void Ict.Common.Printing.TPrinter.InsertDocument ( string AFilename )

inlinevirtual

insert another document into the current document. At the moment only used for PDF

Parameters

AFilename

Reimplemented in Ict.Common.Printing.TPdfPrinter.

◆ LineFeed() [1/3]

virtual float Ict.Common.Printing.TPrinter.LineFeed ( )

inlinevirtual

Line Feed; increases the current y position by the height of the biggest last used font

Returns: the new current line

Reimplemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ LineFeed() [2/3]

abstract float Ict.Common.Printing.TPrinter.LineFeed ( eFont AFont )

pure virtual

Line Feed; increases the current y position by the height of the given font

Returns: the new current line

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ LineFeed() [3/3]

float Ict.Common.Printing.TPrinter.LineFeed ( float height )

inline

Line Feed; increases the current y position by the given height

Returns: the new current line

◆ LineFeedToPageFooter()

abstract float Ict.Common.Printing.TPrinter.LineFeedToPageFooter ( )

pure virtual

Jump to the position where the page footer starts. SetPageFooterSpace is used to define the space reserved for the footer.

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ LineSpaceFeed()

abstract float Ict.Common.Printing.TPrinter.LineSpaceFeed ( eFont AFont )

pure virtual

Line Feed, but not full line; increases the current y position by half the height of the given font

Returns: the new current line

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ LineUnFeed()

abstract float Ict.Common.Printing.TPrinter.LineUnFeed ( eFont AFont )

pure virtual

Reverse Line Feed; decreases the current y position by the height of the given font

Returns: the new current line

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PixelHorizontal()

abstract float Ict.Common.Printing.TPrinter.PixelHorizontal ( float AValueInPixel )

pure virtual

Converts the given value in pixel to the currently used measurement unit, using the horizontal resolution

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PixelVertical()

abstract float Ict.Common.Printing.TPrinter.PixelVertical ( float AValueInPixel )

pure virtual

Converts the given value in pixel to the currently used measurement unit, using the vertical resolution

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PopCurrentState()

void Ict.Common.Printing.TPrinter.PopCurrentState ( )

inline

return to previous printer state; this is used for printing table cells

◆ PopCurrentStateApartFromYPosition()

void Ict.Common.Printing.TPrinter.PopCurrentStateApartFromYPosition ( )

inline

return to previous printer state; but keep the new y position (used eg. for printing the page header)

◆ PrintString() [1/3]

abstract Boolean Ict.Common.Printing.TPrinter.PrintString	(	String	ATxt,
		eFont	AFont,
		eAlignment	AAlign
	)

pure virtual

prints into the current line, aligned x position

Returns: true if something was printed

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PrintString() [2/3]

abstract Boolean Ict.Common.Printing.TPrinter.PrintString	(	String	ATxt,
		eFont	AFont,
		float	AXPos
	)

pure virtual

prints into the current line, absolute x position

Returns: true if something was printed

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PrintString() [3/3]

abstract bool Ict.Common.Printing.TPrinter.PrintString	(	String	ATxt,
		eFont	AFont,
		float	AXPos,
		float	AWidth,
		eAlignment	AAlign
	)

pure virtual

prints into the current line, absolute x position with width and alignment

Returns: true if something was printed

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PrintStringAndFits()

abstract Boolean Ict.Common.Printing.TPrinter.PrintStringAndFits	(	String	ATxt,
		eFont	AFont,
		float	AXPos,
		float	AWidth,
		eAlignment	AAlign
	)

pure virtual

This function uses the normal DrawString function to print into a given space.

Returns: whether the text did fit that space or not.

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PrintStringWrap()

virtual bool Ict.Common.Printing.TPrinter.PrintStringWrap	(	String	ATxt,
		eFont	AFont,
		float	AXPos,
		float	AWidth,
		eAlignment	AAlign
	)

inlinevirtual

prints into the current line, absolute x position with width and alignment this method uses FCurrentXPos and FCurrentYPos to be able to continue a paragraph uses FCurrentXPos and FCurrentYPos to know where to start to print, and also sets valid values in those member variables

Returns: s bool true if any text was printed

Reimplemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ PrintTable()

virtual float Ict.Common.Printing.TPrinter.PrintTable	(	float	AXPos,
		float	AWidthAvailable,
		List< TTableRowGfx >	rows,
		out Int32	ARowsFittingOnPage
	)

inlinevirtual

renders a table at the current FCurrentYPos does not support rowspan at the moment colspan might be implemented in the generation of the TTableRowGfx structure does not care about fitting on page etc.

Parameters

AXPos	the X position to start the table
AWidthAvailable	AWidthAvailable
rows
ARowsFittingOnPage	number of rows that fitted on the page

Returns: height of table

◆ PushCurrentState()

void Ict.Common.Printing.TPrinter.PushCurrentState ( )

inline

store the current printer state (font size etc)

◆ RestoreState()

virtual void Ict.Common.Printing.TPrinter.RestoreState ( )

inlinevirtual

restore the state after a rotation etc

Reimplemented in Ict.Common.Printing.TPdfPrinter.

◆ RotateAtTransform()

virtual void Ict.Common.Printing.TPrinter.RotateAtTransform	(	double	ADegrees,
		double	XPos,
		double	YPos
	)

inlinevirtual

rotate the following output by some degrees, at the given position

Reimplemented in Ict.Common.Printing.TPdfPrinter.

◆ SaveState()

virtual void Ict.Common.Printing.TPrinter.SaveState ( )

inlinevirtual

save the state before a rotation etc

Reimplemented in Ict.Common.Printing.TPdfPrinter.

◆ SetHasMorePages()

abstract void Ict.Common.Printing.TPrinter.SetHasMorePages ( bool AHasMorePages )

pure virtual

Tell the printer, that there are more pages coming

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ SetPageFooterSpace()

abstract void Ict.Common.Printing.TPrinter.SetPageFooterSpace	(	System.Int32	ANumberOfLines,
		eFont	AFont
	)

pure virtual

Set the space that is required by the page footer. ValidYPos will consider this value.

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, Ict.Common.Printing.TPdfPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ StartSimulatePrinting()

void Ict.Common.Printing.TPrinter.StartSimulatePrinting ( )

inline

start the simulation of printing; nothing is actually printed, but the CurrentYPos is increased

Returns: void

◆ ValidXPos()

abstract Boolean Ict.Common.Printing.TPrinter.ValidXPos ( float APosition )

pure virtual

Is the given position still on the page?

Returns: void

Implemented in Ict.Common.Printing.TGfxPrinter, and Ict.Common.Printing.TTxtPrinter.

◆ ValidYPos()

abstract Boolean Ict.Common.Printing.TPrinter.ValidYPos ( )

pure virtual

Is the current line still on the page?

Returns: void

protected

todoComment

◆ FWidth

float Ict.Common.Printing.TPrinter.FWidth

float Ict.Common.Printing.TPrinter.Width

get

todoComment

The documentation for this class was generated from the following file:

csharp/ICT/Common/Printing/Printer.cs

Public Member Functions

Static Public Member Functions

Protected Attributes

Properties

Detailed Description

Constructor & Destructor Documentation

◆ TPrinter()

Member Function Documentation

◆ Cm()

◆ Cm2Inch()

◆ DrawBitmap() [1/2]

◆ DrawBitmap() [2/2]

◆ DrawLine() [1/2]

◆ DrawLine() [2/2]

◆ DrawRectangle()

◆ FinishSimulatePrinting()

◆ GetWidthString()

◆ HasMorePages()

◆ Inch()

◆ Inch2Cm()

◆ Init()

◆ InsertDocument()

◆ LineFeed() [1/3]

◆ LineFeed() [2/3]

◆ LineFeed() [3/3]

◆ LineFeedToPageFooter()

◆ LineSpaceFeed()

◆ LineUnFeed()

◆ PixelHorizontal()

◆ PixelVertical()

◆ PopCurrentState()

◆ PopCurrentStateApartFromYPosition()

◆ PrintString() [1/3]

◆ PrintString() [2/3]

◆ PrintString() [3/3]

◆ PrintStringAndFits()

◆ PrintStringWrap()

◆ PrintTable()

◆ PushCurrentState()

◆ RestoreState()

◆ RotateAtTransform()

◆ SaveState()

◆ SetHasMorePages()

◆ SetPageFooterSpace()

◆ StartSimulatePrinting()

◆ ValidXPos()

◆ ValidYPos()

Member Data Documentation

◆ FBottomMargin

◆ FCurrentState

◆ FHeight

◆ FLeftMargin

◆ FMarginType

◆ FNumberOfPages

◆ FOrientation

◆ FPageFooterSpace

◆ FprintAction

◆ FPrinterLayout

◆ FRightMargin

◆ FTopMargin

◆ FWidth

Property Documentation

◆ AnchorXPos

◆ AnchorYPos

◆ CurrentAlignment

◆ CurrentDocumentNr

◆ CurrentFont

◆ CurrentLineHeight

◆ CurrentPageNr

◆ CurrentRelativeFontSize

◆ CurrentXPos

◆ CurrentYPos

◆ LeftMargin

◆ NumberOfPages

◆ PageFooterSpace

◆ PrintingMode

◆ RightMargin

◆ Width
